Great Quality Intake Valve Kit With Solenoid Valve Intake/Unload Valve Compressor Spare Parts For Screw Air Compressor

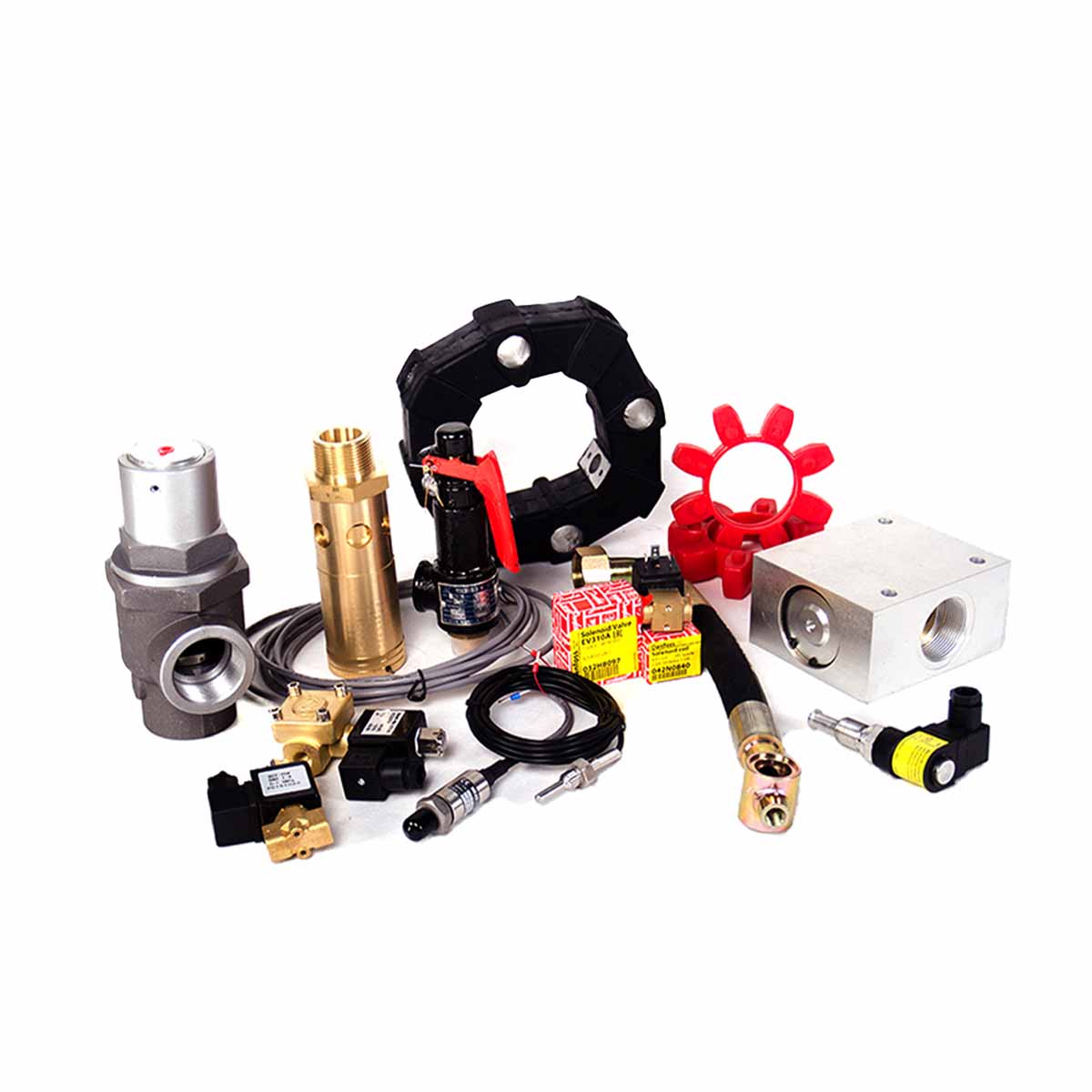

Product Image
Product Features
The intake valve of the whole system has a non-return function, and it will not inject fuel in the case of emergency shutdown;
The intake valve has the function of unloading and supplying air, which can effectively eliminate the cavitation noise generated by the host;
The intake valve integrates relief valve, air supply valve, solenoid valve and proportional valve, which is easy and fast to install.
|
Model prefix |
AIV-25 |
AIV-40 |
AIV-50 |
AIV-65 |
AIV-85 |
AIV-100 |
AIV-120 |
|
Diameter(mm) |
25 |
40 |
50 |
65 |
88 |
100 |
120 |
|
Maximum working pressure (bar) |
15 |
||||||
|
Working medium temperature (℃) |
-20～120 |
||||||
|
Working ambient temperature (℃) |
-20～60 |
||||||
|
non-return function |
● |
● |
● |
● |
● |
● |
● |
|
ON/OFF control |
● |
● |
● |
● |
● |
● |
● |
|
Flow stepless control |
― |
― |
○ |
○ |
● |
● |
● |
|
Unloading the supplemental gas function |
○ |
○ |
● |
● |
● |
● |
○ |
|
Solenoid valve power supply |
AC220V 50Hz（Please contact us for other power requirements） |
||||||
|
Solenoid valve certification |
CE（Please contact us for other certifications） |
||||||
|
Air intake direction |
vertical |
vertical/horizontal |
vertical/horizontal |
vertical/horizontal |
vertical/horizontal |
vertical/horizontal |
vertical |
| ● Standard ○ Optional ― none | |||||||
|
Model prefix |
Air intake direction |
A |
B |
C |
D |
E |
|
AIV-25B |
vertical |
4-9 |
62X55 |
53X53 |
75 |
75X80 |
|
AIV-25J |
vertical |
4-6.5 |
82 |
78 |
84 |
80X80 |
|
AIV-25Y |
vertical |
4-9 |
116 |
104 |
84 |
98X98 |
|
AIV-25L |
vertical |
4-7.5 |
72 |
― |
84 |
92 |
|
AIV-40B |
vertical |
4-9 |
116 |
104 |
105 |
98X98 |
|
AIV-40C |
vertical |
4-13 |
135 |
115 |
105 |
120X120 |
|
AIV-40D |
vertical |
4-17 |
150 |
130 |
105 |
136X136 |
|
AIV-40F |
vertical |
4-9 |
135 |
120 |
105 |
120X120 |
|
AIV-40G |
vertical |
4-11 |
135 |
109 |
105 |
120X120 |
|
AIV-40J |
vertical |
4-13 |
160 |
135 |
105 |
136X136 |
|
AIV-50B |
vertical |
4-17 |
150 |
135 |
140.5 |
130X130 |
|
AIV-50C |
vertical |
4-13 |
135 |
120 |
140.5 |
130X130 |
|
AIV-50R |
vertical |
4-9 |
125 |
115 |
140.5 |
130X130 |
|
AIV-65C |
vertical |
4-17 |
170 |
143 |
155.5 |
144X144 |
|
AIV-65R |
vertical |
4-13 |
120X120 |
― |
155.5 |
144X144 |
|
AIV-65Z |
vertical |
4-13 |
135 |
― |
155.5 |
140X140 |
|
AIV-85B |
vertical |
4-17 |
180 |
160 |
181.5 |
156X156 |
|
AIV-100C |
vertical |
8-17 |
225 |
210 |
200 |
255 |
|
AIV-120B |
vertical |
8-17 |
225 |
210 |
249 |
250 |
|
AIV-40A |
horizontal |
4-9 |
116 |
104 |
113 |
98X98 |
|
AIV-40E |
horizontal |
4-9 |
116 |
104 |
72 |
98X98 |
|
AIV-50A |
horizontal |
4-17 |
150 |
135 |
97 |
130X130 |
|
AIV-50E |
horizontal |
4-13 |
135 |
120 |
97 |
130X130 |
|
AIV-65A |
horizontal |
4-17 |
170 |
143 |
95 |
144X144 |
|
AIV-85A |
horizontal |
4-17 |
180 |
160 |
127 |
155X155 |
|
AIV-100A |
horizontal |
8-17 |
225 |
210 |
150 |
255 |
