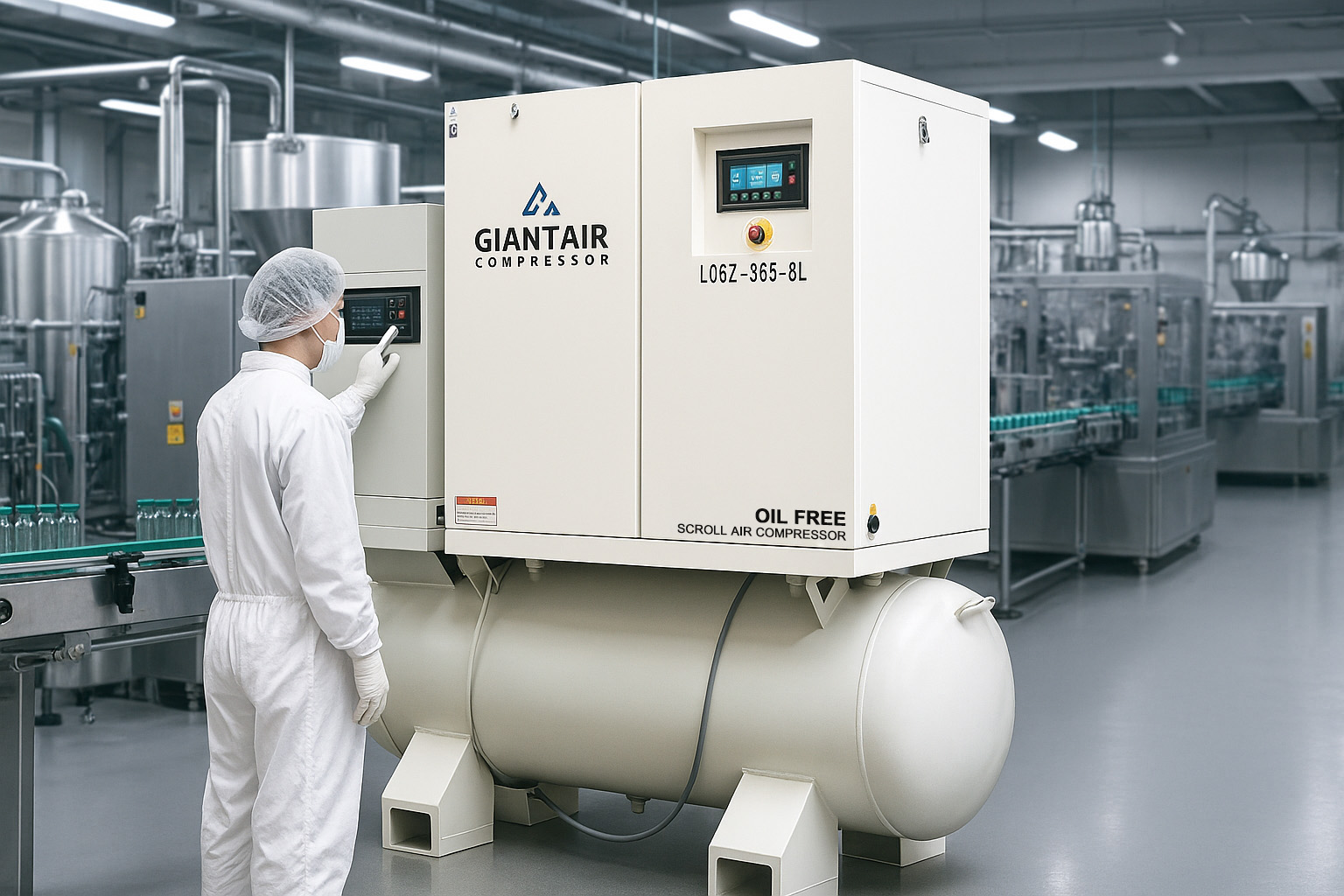

Oil-free All-in-one Scoll Air Compressor Oil Free Silent Low Noise Compressor with Air Dryer and Tank
About Scroll Air Compressor!
The scroll air compressor is a new generation of air compressor developed in recent years. Compared with the traditional air compressor, it has the advantages of novel structure, small size, light weight, low noise, long life, stable and continuous gas transmission, and easy operation. , A series of excellent technical performances such as low maintenance cost are praised as "no maintenance air compressor" and "new revolution air compressor" in the industry, and it is an ideal model for air compressors below 50HP
Features And Advantages
100% oil-free: can be used in any industry, especially suitable for users who have high requirements for compressed air oil content.
Quiet operation: The scroll air compressor operates with extremely low noise and a healthier working environment.
Easy installation: It occupies a small area and can be installed near the gas point, thereby reducing the installation of compressed air pipe network and effectively reducing the installation cost of the pipe network.
Simple maintenance: no need to replace or add lubricating oil, only a small amount of consumables need to be replaced regularly, and the maintenance cost is low.
Zero emission: only condensate is discharged, no harmful substances are discharged, which is in line with sustainable development goals.
Product Parameter Table
| Model | Air End | Max. working pressure |
Free Air Delivery | Motor power | Air Tank | Noise level | Weight | Dimension | Air Discharge Size | ||||
| bar | PSI | l/s | m³/min | cfm | kW | hp | L | dB(A) | kg | mm | inch | ||
| ZS-3ATD | S03T-Y22-8 | 8 | 116 | 4.0 | 0.24 | 8.6 | 1 x 2.2 | 1 x 3 | 200 | 55±3 | 245 | 1390 x 630 x 1445 | 1/2 |
| ZS-5ATD | S05T-Y37-8 | 8 | 116 | 6.7 | 0.40 | 14.3 | 1 x 3.7 | 1 x 5 | 200 | 55±3 | 365 | 1390 x 630 x 1445 | 1/2 |
| ZS-7.5ATD | S06T-Y55-8 | 8 | 116 | 10.0 | 0.60 | 21.4 | 1 x 5.5 | 1 x 7.5 | 200 | 60±3 | 390 | 1390 x 630 x 1445 | 1/2 |
| ZS-10ATD | S05T-Y75-8 | 8 | 116 | 13.3 | 0.80 | 28.6 | 2 x 3.7 | 2 x 5 | 200 | 60±3 | 490 | 1520 x 710 x 1920 | 1 |
| ZS-15ATD | S06T-Y110-8 | 8 | 116 | 20.0 | 1.20 | 42.9 | 2 x 5.5 | 2 x 7.5 | 200 | 60±3 | 530 | 1520 x 710 x 1920 | 1 |
| ZS-20ATD | S05T-Y150-8 | 8 | 116 | 26.7 | 1.60 | 57.1 | 4 x 3.7 | 4 x 5 | 200 | 62±3 | 590 | 1520 x 710 x 1920 | 1 |
| TY-Belt Drive with Asynchronous motor | |||||||||||||
| Model | Air End | Max. working pressure |
Free Air Delivery | Motor power | Air Tank | Noise level | Weight | Dimension | Air Discharge Size | ||||
| bar | PSI | l/s | m³/min | cfm | kW | hp | L | dB(A) | kg | mm | inch | ||
| ZS-3ATD | S03Z-P22-8 | 8 | 116 | 4.0 | 0.24 | 8.6 | 1 x 2.2 | 1 x 3 | 200 | 55±3 | 235 | 1390 x 630 x 1445 | 1/2 |
| ZS-5ATD | S05Z-P37-8 | 8 | 116 | 6.7 | 0.40 | 14.3 | 1 x 3.7 | 1 x 5 | 200 | 55±3 | 260 | 1390 x 630 x 1445 | 1/2 |
| ZS-7.5ATD | S06Z-P55-8 | 8 | 116 | 10.0 | 0.60 | 21.4 | 1 x 5.5 | 1 x 7.5 | 200 | 60±3 | 280 | 1390 x 630 x 1445 | 1/2 |
| ZS-10ATD | S05Z-P75-8 | 8 | 116 | 13.3 | 0.80 | 28.6 | 2 x 3.7 | 2 x 5 | 200 | 60±3 | 480 | 1520 x 710 x 1920 | 1 |
| ZS-15ATD | S06Z-P110-8 | 8 | 116 | 20.0 | 1.20 | 42.9 | 2 x 5.5 | 2 x 7.5 | 200 | 60±3 | 510 | 1520 x 710 x 1920 | 1 |
| ZS-20ATD | S05Z-P150-8 | 8 | 116 | 26.7 | 1.60 | 57.1 | 4 x 3.7 | 4 x 5 | 200 | 62±3 | 560 | 1520 x 710 x 1920 | 1 |
| ZP- Direct Drive with Permanent Magnet Synchronous Motor | |||||||||||||
