Choosing between an oil-lubricated air compressor and an oil-free air compressor is one of the most important decisions in any compressed air system. The right compressor affects air quality, operating costs, maintenance requirements, and the reliability of pneumatic equipment.
In this guide, we explain how each compressor type works, how they impact compressed air quality, and which industries should choose oil-free or oil-based systems.
What Is an Oil-Free Air Compressor?
An oil free compressor is an air compressor designed to produce compressed air without oil inside the compression chamber. Unlike oil-lubricated compressors that rely on oil for cooling and sealing, oil free air compressors use special materials and engineering design to prevent oil contamination in the air stream. These oil free models are widely used where clean air and strict air quality standards are required, such as pharmaceutical production, food processing, and electronics manufacturing.
How Oil-Free Air Compressors Operate
Oil free air compressors remove oil from the compression process while still protecting compressor components from wear and heat.
No oil in compression chamber
- Intake air is compressed without oil injection
- Eliminates oil carryover and contamination risk
- Prevents oil particles entering the air systems

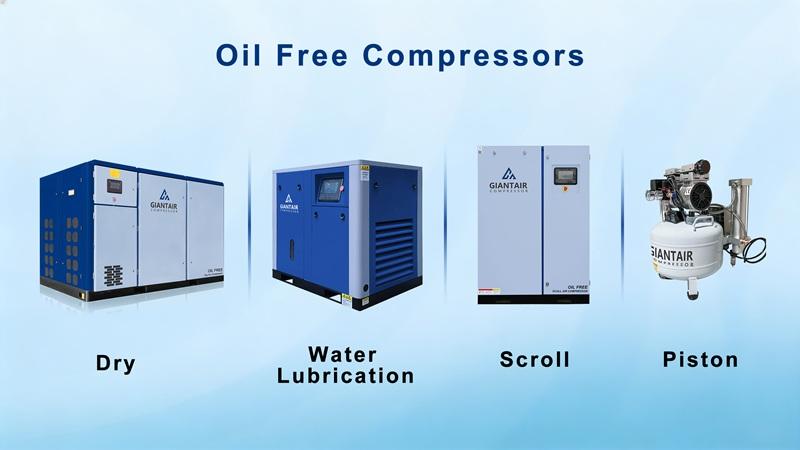

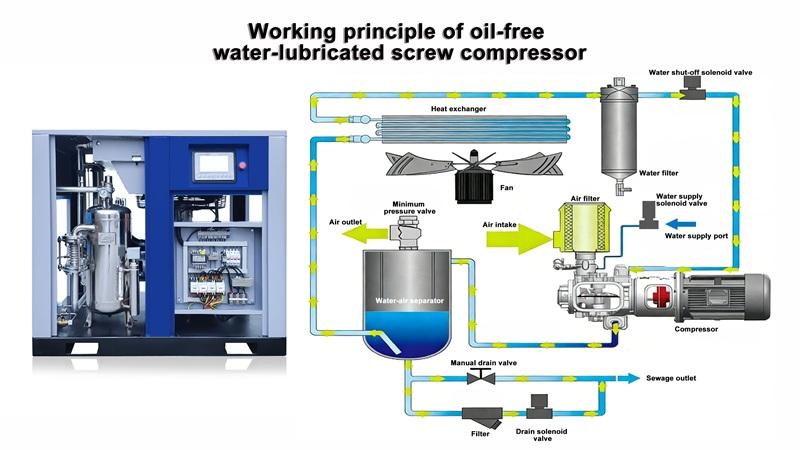

Dry-running or water-lubricated systems
- Dry-running oil free models use coated piston rings or rotary screw elements
- Water-lubricated oil free compressor designs use water to cool and seal
- Both methods maintain adequate lubrication without oil lube
Special coatings such as Teflon or ceramic
- Teflon coating reduces friction in piston chamber or rotary screw surfaces
- Improves life expectancy of compressor components
- Helps maintain stable air flow without oil flooded operation
Advantages of Oil-Free Compressors
Oil free compressor systems provide measurable benefits in applications where air purity and compliance are critical.
- Eliminates oil particles and oil vapor in the air
- Reduces the risk of product contamination
- Supports strict environmental regulations
- Provides a cleaner air stream
- Requires fewer downstream air filters
- Lowers the risk of oil carryover in air lines
- Makes compliance with air quality standards easier
- Ideal for pharmaceutical production, food processing, electronics manufacturing, and laboratories
Limitations and Cost Considerations
Despite their benefits, oil free compressors have practical trade-offs that should be evaluated carefully.
- Higher purchase price than many oil-based air compressors
- Precision engineering and specialized components increase overall cost
- Coatings and seals may wear faster without oil lubrication
- Filter replacements and regular inspections are especially important
- Improper maintenance can reduce system life expectancy
- Oil-lubricated compressors often manage heat more effectively
- Oil-free models may require more cooling and power in some applications
- Environmental impact and carbon footprint can vary depending on the system design

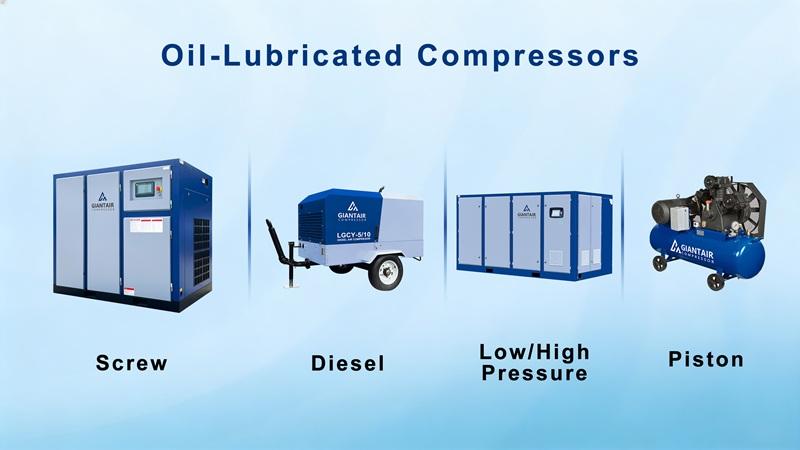

What Is an Oil-Lubricated Air Compressor?
An oil-lubricated air compressor is a compressor that uses oil inside the compression chamber to reduce friction, cool internal parts, and seal gaps during air compression. These oil lubricated based compressors are widely used in industrial compressed systems because they improve durability, reduce heat buildup, and support reliable continuous operation. Oil lubricated air compressors are common in general manufacturing, automotive shops, and heavy-duty applications where very high air purity is not required.

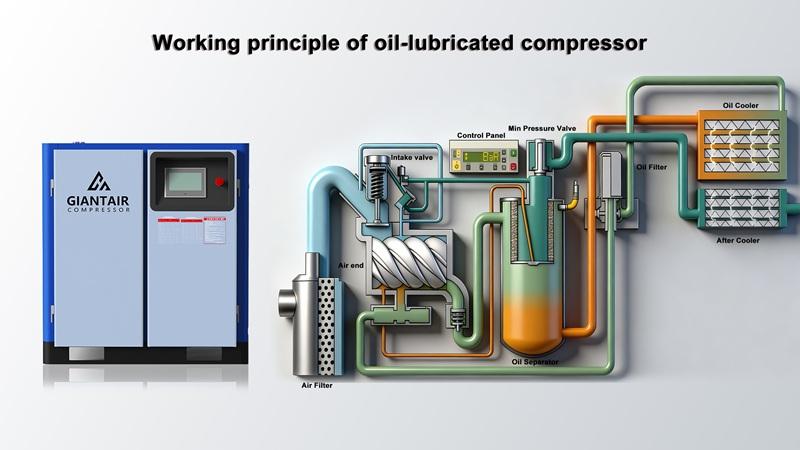

How Oil-Injected Compressors Work
In oil injected compressors, oil is introduced directly into the compression chamber of a rotary screw or piston compressor.
Oil injected into compression chamber
- Oil enters with incoming air during compression
- Used in rotary screw and piston compressor types
- Helps maintain adequate lubrication of moving parts
Oil cools and seals internal parts
- Oil absorbs heat created during compression
- Improves sealing between rotors, piston rings, and cylinder walls
- Maintains stable air flow and efficiency
Oil separation before air stream exits
- Oil separators remove most compressors oil from compressed air
- Remaining oil vapor reduced by air filters and dryers
- Clean air then enters downstream air lines
Role of Oil in Lubrication, Cooling, and Sealing
Oil plays multiple critical roles in oil lubricated air compressors.
Adequate lubrication reduces friction
- Protects connecting rod, piston chamber, and bearings
- Prevents metal-to-metal contact
- Reduces wear on compressor components
Oil reduces heat and improves efficiency
- Removes heat from compression process
- Allows higher operating pressure and airflow
- Improves energy efficiency in many systems
Protects components and extends life expectancy
- Lubrication protects cast iron cylinders and rotary screw elements
- Reduces vibration and noise
- Long lifespan when properly maintained
Advantages of Oil-Lubricated Compressors
Oil lubricated based compressors provide several operational advantages.
- Lower upfront cost than many oil-free compressor units
- Widely available across different compressor sizes
- Reduces heat effectively during operation
- Supports stable performance under heavy and continuous industrial loads
- Scheduled oil changes help protect internal components
- Durable designs, including cast iron and rotary screw systems, support long service life
- Offers strong life expectancy when properly maintained in industrial environments
Limitations and Contamination Risks
Despite their advantages, oil lubricated based compressors can introduce contamination of oil into compressed air if not properly filtered.
- Small amounts of oil particles or oil vapor may remain in the compressed air stream
- Oil carryover can affect air quality in sensitive processes
- Air filters, dryers, and separators are required to reduce contamination risk
- Oil disposal adds to maintenance effort and cost
- Scheduled oil service is necessary for proper system performance
- In sensitive industries such as food processing, pharmaceutical production, and electronics manufacturing, contamination can damage products or violate air quality standards
Oil-Free vs Oil-Lubricated Compressors
| Parameter | Oil Lubricated Compressors | Oil Free Compressors |
|---|---|---|
| Compression Chamber | Oil injected | No oil |
| Lubrication | Oil lube | Dry、scroll or water lubrication |
| Heat Control | Oil flooded cooling | Air or water cooling |
| Oil Carryover | Possible | Eliminated |
| Maintenance | Scheduled oil changes | No oil changes |
| Environmental Impact | Oil disposal required | Reduced oil waste |
| Air Purity | Filter-dependent | Intrinsically oil free |
| Typical Use | General manufacturing | Food processing, pharma |
| Lifecycle Cost | Lower initial | Higher capital |
| Carbon Footprint | Influenced by oil handling | Influenced by energy use |

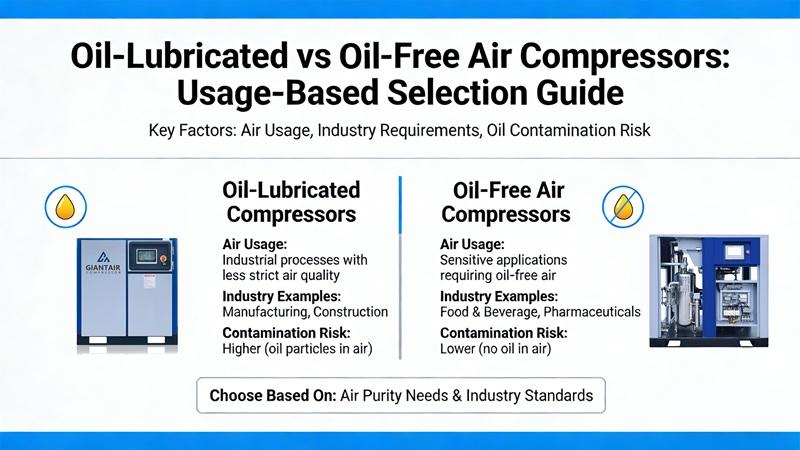

Application-Based Selection Guide
Choosing between oil lubricated compressors vs oil free air compressors depends mainly on how the air will be used. Different industries have different air quality requirements, and the risk of oil contamination varies widely.

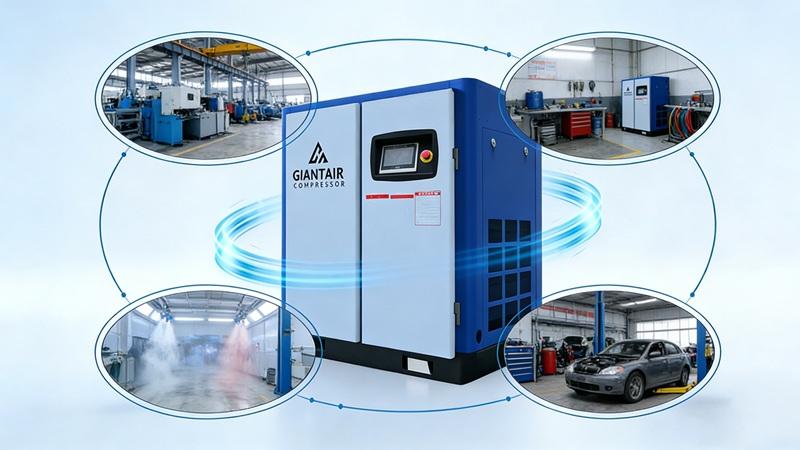

When to Choose Oil-Lubricated Compressors
Oil lubricated air compressors are ideal where small amounts of oil carryover can be controlled with air filters and dryers, and where durability under heavy load is more important than ultra-pure air.
| Application Area | Common Uses | Key Reason |
|---|---|---|
| Automotive and workshop use | Air tools, tire inflation, nail gun systems, repair shops | Works well with filters and dryers |
| Heavy-duty industrial production | Rotary screw systems, mining, construction, metal fabrication | Oil cooling helps under continuous heavy loads |
| Budget-sensitive operations | Small to mid-size industrial setups, general plant use | Lower upfront cost and easier servicing |

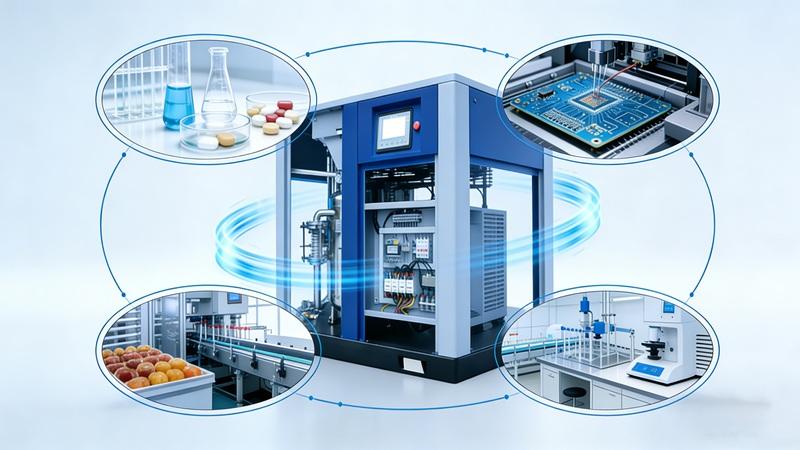

When to Choose Oil-Free Compressors
Oil free compressors are required where oil particles in the air stream could damage products or violate air quality standards.
| Application Area | Common Uses | Key Reason |
|---|---|---|
| Food processing and beverage production | Packaging, mixing, bottling, conveying | Clean air, often Class 0 required |
| Pharmaceutical production and medical systems | Tablet coating, sterile air supply, cleanrooms | Strict air purity standards |
| Electronics manufacturing | Circuit board assembly, coating | Oil vapor can damage components |
| Laboratories and clean environments | Instrument air, testing, research systems | Pure air is essential |

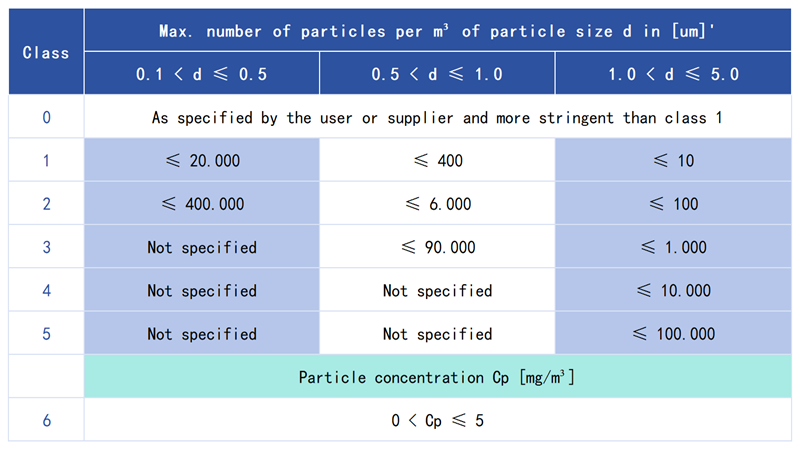

ISO 8573-1 Air Quality Standards Explained
Choosing an air compressor often depends on required air purity. ISO 8573-1 defines air quality classes for air systems.
The International Organization for Standardization (ISO) defines global standards for industrial and commercial use. These standards apply to many industries, including compressed air systems.
Compressed air quality is classified under ISO standards. Air purity depends on the number of particles per cubic meter and particle size. Based on these factors, compressed air is divided into different ISO classes, usually from Class 0 to Class 5.
The original ISO standard for compressed air (1991) was mainly developed for filter manufacturers. At that time, the standard defined five oil concentration classes. The highest level was Class 1.
Class 1 limits oil concentration to 0.01 mg/m³. This is measured at 1 bar(a), 14.5 psia, and 20°C (68°F). Air that meets this level is often described as a “technically oil-free solution.”
In 2001, the ISO standard was updated. Another revision followed in 2010. The current version defines limits for total oil content. This includes oil aerosol, liquid oil, and oil vapor.
A new requirement was also introduced for measuring oil vapor separately. This made the standard more accurate and easier to apply in real systems.
At the same time, a new classification was added. This is Class 0. It represents the highest air purity level. It is used in applications that require extremely clean compressed air.
- Class 0: No detectable oil contamination → pharmaceutical production, food processing, medical
- Class 1–2: Very clean compressed air → electronics manufacturing and laboratories
- Class 3–4: General industrial compressed air → oil compressors with air filters
Compressor Selection Checklist
Use this checklist to decide between oil lubricated air compressors and oil less air compressor options.
1. Air Quality Needs
- Need Class 0 oil-free air? → Choose oil free air compressors
- Small oil concentration acceptable with filters? → Oil lubricated compressor
2. Industry Type
- Food processing, pharmaceutical production, electronics → Oil free compressor
- General manufacturing or workshop air tools → Oil compressors
3. Duty Cycle
- Continuous heavy-load compressed air → Oil flooded rotary screw
- Light or intermittent clean air use → Oil free units
4. Budget and Operating Cost
- Lower upfront air compressor cost needed → Oil lubricated
- Willing to invest for clean air → Oil free air compressor
5. Maintenance Capability
- Can manage oil changes and oil disposal → Oil compressors
- Want no-oil maintenance → Oil less compressor
6. Contamination Risk
- Product contamination unacceptable → Oil free air compressor
- Minor oil carryover manageable → Oil lubricated air compressor
Hidden Costs and Risk Factors to Consider
When comparing oil-lubricated and oil-free air compressors, the initial purchase price is only one part of the total cost. Long-term expenses often come from filtration, maintenance, compliance, energy use, and the risk of contamination in sensitive applications.
Hidden Costs
Lifecycle costs can significantly affect the real total cost of ownership, especially in systems that require extra air treatment and maintenance.
- Additional air filters and dryers may be needed to reach required air purity levels
- Coalescing filters and activated carbon filters can add equipment and replacement costs
- Refrigerant or desiccant dryers may be required to maintain clean air supply
- Multiple filtration stages can create pressure drop and reduce airflow efficiency
- Higher pressure demands can increase motor load and energy consumption over time
- Frequent filter replacements and separator element changes add ongoing maintenance cost
- Routine monitoring of oil concentration may be necessary in regulated environments
- Used oil and filter disposal can increase service and environmental management costs
Risk Factors
Operational and compliance risks can create added costs through downtime, rejected products, and stricter inspection requirements.
- Oil carryover can affect packaging, coating, and other sensitive production lines
- Oil particles or oil vapor can damage electronics manufacturing processes
- Residue buildup may reduce the performance of pneumatic systems like valves and tools
- Failure to meet ISO 8573-1 air quality standards can lead to compliance issues
- Product rejection is possible in food processing and pharmaceutical production
- Contamination can result in lost batches, recalls, and production delays
- Environmental regulations may require stricter handling and documentation of oil service
- Air quality audits may involve testing, inspections, and possible shutdowns if standards are not met
- Higher energy use can increase both operating cost and carbon footprint over time
Frequently Asked Questions About Oil Lubricated and Oil-Free Compressors
Is Oil-Free Always Better for Compressed Air Systems?
No. An oil free compressor is necessary only when air purity or ISO 8573-1 Class 0 standards are required, such as pharmaceutical production or food processing. For general manufacturing, air based tools, and heavy-duty compressed air systems, oil lubricated air compressors are often more durable and cost-effective.
Do Oil-Lubricated Compressors Always Contaminate Air?
Not always. Modern oil lubricated based compressors use separators and air filters to reduce oil carryover to very low oil concentration levels. However, trace oil vapor or oil particles may still remain, which can affect sensitive compressed air applications.
Can Filtration Make Oil Compressors Safe for Food or Pharma Use?
Filtration can reduce oil contamination but cannot always guarantee Class 0 oil-free air. Multiple air filters, dryers, and monitoring systems are required, increasing cost and complexity. For strict air quality standards, oil free air compressors are usually safer and easier to certify.
Which Compressor Is Better for a Small Workshop Using Air based Tools?
A small workshop using air tools, nail guns, or tire inflation usually benefits from an oil lubricated air compressor. Air purity requirements are lower, and the compressor will be cheaper and durable when properly maintained.
Which Compressor Should a Food Packaging Plant Choose?
Food processing and beverage packaging lines require clean air and often ISO 8573-1 Class 0 standards. In these cases, oil free air compressors are preferred to avoid oil carryover that could contaminate products.
Are Oil-Free Compressors More Energy Efficient?
Not always. Oil flooded compressors reduce heat effectively and can be efficient under heavy loads. Some oil free units may require more cooling power or higher motor speed, increasing energy consumption. Efficiency depends on compressor size, duty cycle, and system design.
Do Oil-Free Compressors Require Less Maintenance?
Oil free compressors eliminate oil changes and oil disposal, but they still need filter replacements, cooling system checks, and inspection of coated piston rings or rotary screw elements. Both compressor types require regular service for long life expectancy.
Can Oil Carryover Damage Equipment?
Yes. Oil particles and oil vapor in the compressed air stream can clog valves, damage sensors, and affect coating or electronics manufacturing. Even small oil concentration levels can cause problems in sensitive equipment.
Which Compressor Is Better for Continuous Industrial Production?
For heavy-duty operations like mining, steel plants, or large manufacturing lines, oil lubricated compressors are often preferred because they provide strong cooling, stable air flow, and long life expectancy under continuous load.
Choosing between oil lubricated and oil free air compressors comes down to your air quality needs, operating conditions, and long-term performance goals. Understanding how each air compressor works and how it affects maintenance, efficiency, and compressed air quality, helps you make a confident, reliable choice for your system.
