Unveiling the Complete Guide to Compressed Air Piping Systems

A well-designed compressor pipe system is a fundamental part of any compressed air system, not just the air compressor itself. The way compressed air pipes are selected and arranged has a direct impact on pressure stability, air quality, and overall system efficiency.

Poor air piping design can lead to pressure loss, moisture buildup, corrosion, and leaks that reduce the performance of air tools and pneumatic tools. An effective compressed air piping system ensures that air moves efficiently through the piping system and reaches each point of use at the required pressure. Understanding these basics is essential for designing safe, reliable, and cost-effective air compressor piping systems.

How Compressed Air Piping Systems Work

A compressed air piping system is designed to move air efficiently from the air compressor to every point where it is needed. Unlike simple fluid piping, compressed air must be carefully managed to control pressure loss, airflow stability, and energy use.

From Compressor Outlet to Point-of-Use

In a typical air compressor piping system, compressed air leaves the compressor and travels through a structured network of pipes before reaching tools and equipment.

Typical airflow path includes:

• Air exiting the air compressor discharge.
• Flow entering the main header of the compressed air lines.
• Distribution through horizontal headers and vertical drop lines.
• Delivery to pneumatic tools, and other end uses.

Key components and their roles:

• Headers: Carry large volumes of air across the system with minimal pressure loss.
• Drops: Supply air from the header down to workstations while helping manage moisture.
• Compressed air lines: Connect the full system and ensure steady airflow to each point of use.

Pressure, Flow, and Velocity in Compressed Air Pipes

Inside compressed air pipes, pressure, flow rate, and velocity are closely linked. Changes in one directly affect the others.

• Smaller pipe diameters increase air velocity.
• Higher velocity creates more friction and pressure drop.
• Longer pipe runs and multiple fittings increase resistance.

Why Compressed Air Behaves Differently Than Water

Compressed air behaves very differently from liquids like water because it is compressible. This difference has a major impact on system design.

• Air compresses and expands under pressure changes.
• Velocity changes more rapidly than in liquid systems.
• Pressure drop has a greater effect on performance.

Impact on system efficiency

• Sudden changes in pipe size or direction create turbulence in the air stream.
• Poor layout increases pressure loss across the piping system.
• Inefficient design leads to higher energy consumption and more wear on system components.

Key Design Objectives of an Efficient Air Compressor Piping System

An efficient air compressor piping system is designed to deliver reliable performance while keeping energy use and maintenance costs low. The main objective of any compressed air system is to move air through the piping system with minimal pressure loss and consistent air quality.

Delivering Required Pressure at the Lowest Energy Cost

Pipe size and layout directly affect system efficiency and compressor workload.

• Properly sized compressor pipe reduces airflow restriction.
• Fewer fittings and smoother layouts limit pressure loss.
• Well-designed compressed air lines maintain stable pressure.

Maintaining Air Quality in the Air Stream

Piping design plays a key role in protecting the air stream. A good design helps

• Control moisture formation.
• Limit oil and particle contamination.
• Protect air and pneumatic tools.

Designing for Reliability, Safety, and Expansion

A strong piping system supports both current and future needs.

• Safe operation under high pressure.
• Reduced leaks and downtime.
• Capacity for additional tools and equipment.

Common Pipe Materials Used in Compressed Air Systems

Selecting the right pipe material is a critical decision in any compressed air system. The material used in a piping system affects pressure stability, air quality, safety, and long-term reliability.

Metal vs Non-Metal Pipe Materials

The most common choice in air compressor piping systems is between metal pipe and plastic pipes. Each has clear strengths and limitations.

Why Pipe Material Affects Pressure Drop and Corrosion

Pipe material directly influences how air moves through the system and how the pipe ages over time.

Internal roughness and airflow resistance

•  Rough surfaces increase friction inside the pipe.
• Higher friction increases pressure loss in compressed air lines.
• Smooth materials improve airflow and reduce energy demand.

Corrosion and long-term performance

• Steel pipes can produce rust contamination if not protected.
• Rust particles reduce air quality and damage system components.
• Corrosion resistant materials help maintain clean air and reduce maintenance.

Pressure Ratings vs Real-World Operating Conditions

Nominal pressure ratings do not always reflect how a material behaves in real compressed air applications. Important real-world factors include

• Pressure spikes during compressor start-up.
• Temperature changes along the compressed air piping system.
• Oil exposure from the air compressor.
• Long-term fatigue from pressure cycling.

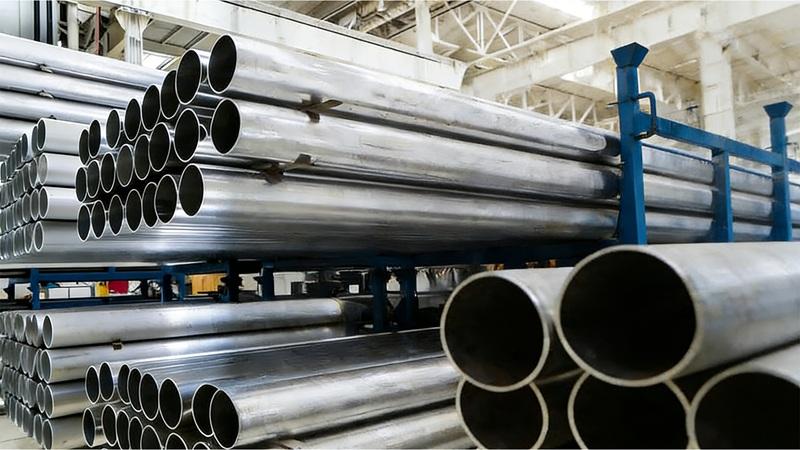

Metal Pipes for Air Compressor Piping

Metal piping is the most common choice in air compressor piping systems because it offers strength, stability, and reliable performance under high pressure conditions.

Piping reference diagram	Pipe Material	Strength & Pressure Performance	Corrosion & Contamination Risk	Installation & Cost	Typical Applications
	Black Steel / Black Iron Pipe	Very strong and durable for continuous high pressure air	Can corrode internally and produce rust contamination over time	Heavy; threaded installation; moderate cost	Industrial headers, large compressed air lines
	Galvanized Steel	Structurally strong	Zinc coating can fail and contaminate the air stream	Similar effort to black pipe	Generally discouraged in compressed air systems

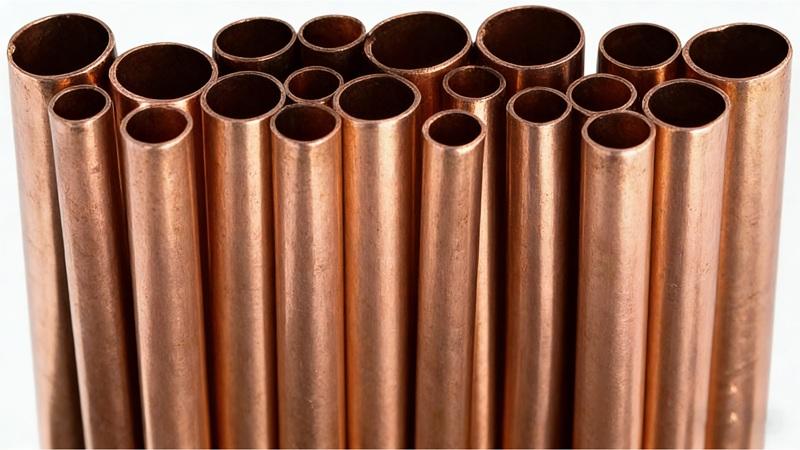

	Copper Pipe	Handles pressure well with stable airflow	Excellent corrosion resistance; clean air delivery	Higher installation cost and labor	Clean air applications, sensitive equipment

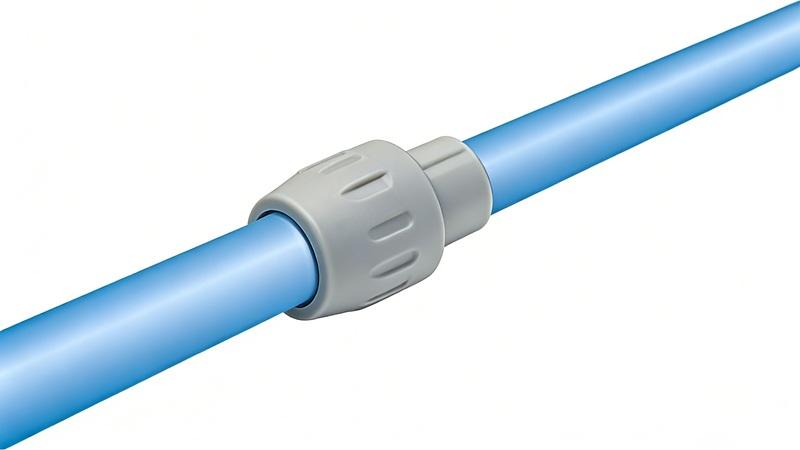

	Aluminum Piping Systems	Designed specifically for compressed air	Naturally corrosion resistant with smooth interior	Lightweight; extremely easy to install	Modern shops, modular and expandable systems

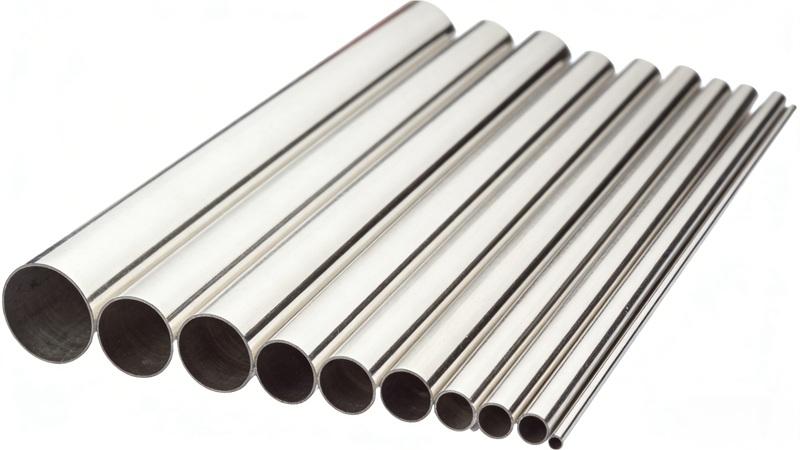

	Stainless Steel	Excellent for sustained high pressure operation	Outstanding corrosion resistance	Very high cost	Critical environments and harsh conditions

Plastic and Composite Pipes in Compressed Air Applications

Plastic pipes are often considered because they appear inexpensive and extremely easy to install. However, most plastics behave very differently under compressed air than they do in water distribution or general plumbing systems.

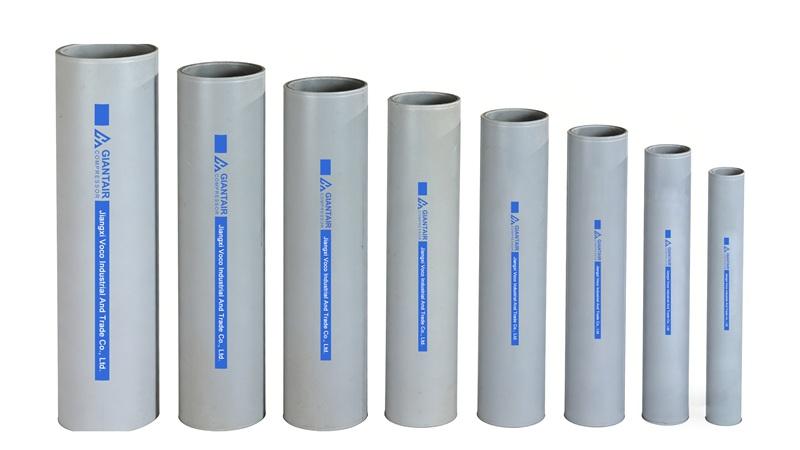

Why PVC Pipe and CPVC Pipe Are Unsafe for Compressed Air

PVC pipe and CPVC pipe are not designed for high pressure compressed air applications.

• These materials are rigid and brittle, especially as they age.
• Under pressure failure, PVC pipe can shatter instead of cracking.
• Breakage can send razor sharp shrapnel outward at high speed.

Approved Plastic Materials for Compressed Air

Some plastic pipes and composite tubing are engineered specifically for compressed air distribution. These materials are designed to:

• Withstand repeated pressure cycling.
• Resist oil and temperature exposure.
• Fail in a more controlled manner than brittle plastics.

Failure Modes of Plastic Pipes

Even approved plastics have limitations that must be understood in system design.

• Long-term exposure to UV light or direct sunlight.
• Material aging and loss of flexibility.
• Repeated pressure cycling from compressor start and stop.
• Heat and oil exposure from the air compressor.

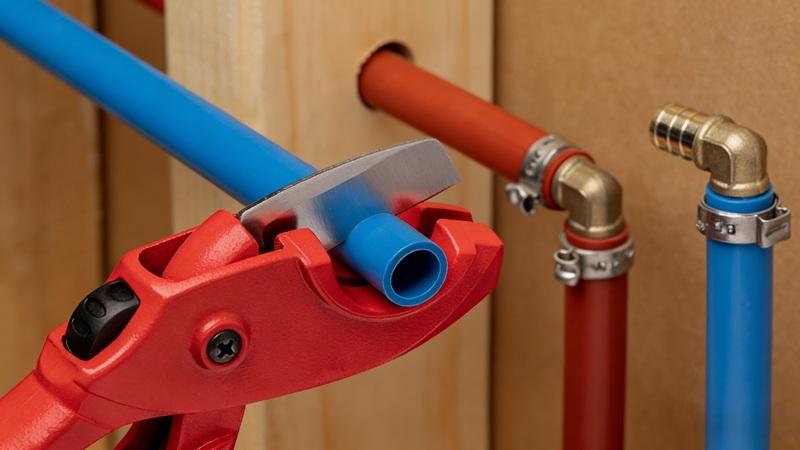

PEX Pipe and PEX-AL-PEX Tubing for Compressed Air Lines

PEX, PEX tubing, and PEX-AL-PEX are sometimes used in compressed air lines because they are flexible and easy to install. However, these materials were developed for water distribution and general plumbing, not for long-term use in compressed air systems.

What PEX Tubing Is Designed For

PEX was originally designed for:

• Hot and cold water distribution systems.
• Stable temperatures and liquid pressure.
• Residential and light commercial plumbing.

Pressure, Temperature, and Oil Compatibility

In an air compressor piping system, PEX may be exposed to:

• Elevated temperatures near the air compressor.
• Pressure spikes during start-up.
• Oil carryover in the air stream.
• Continuous pressure cycling.

PEX vs Metal Pipes

When PEX or PEX-AL-PEX May Be Acceptable

Limited use may be possible in:

• Low-pressure compressed air systems.
• Short, non-critical compressed air lines.
• Controlled environments with no oil exposure.

When PEX Should Be Avoided

PEX should be avoided in:

• Continuous high pressure applications.
• Permanent industrial air piping systems.
• Compressor discharge areas.
• Systems supplying critical air or pneumatic tools.

Pressure Drop: The Hidden Cost of Poor Piping Design

Pressure drop is one of the most expensive and overlooked inefficiencies in a compressed air system. As compressed air travels through the piping system, friction, turbulence, and restrictions reduce available pressure at the point of use. To compensate, the air compressor must operate at higher output or run longer, increasing energy consumption and accelerating equipment wear.

How Diameter, Length, and Fittings Affect Pressure Loss

Pressure loss increases as resistance builds inside the pipe.

Primary contributors include

• Undersized compressor pipe, which increases air velocity and friction.
• Long compressed air lines that create cumulative pressure loss.
• Excessive fittings, valves, and connectors that restrict airflow.
• Poorly selected pipe materials with high internal roughness.

Each restriction reduces usable pressure and limits system performance.

Turbulence and Airflow Disruption

Poor air piping layout creates unstable airflow and additional losses.

Common causes of turbulence include:

• Sharp bends and tight elbows instead of smooth-radius turns.
• Tees installed directly in the airflow path.
• Irregular routing that disrupts the air stream.

Turbulence increases pressure drop and causes inconsistent pressure delivery to tools and equipment.

How Pressure Drop Increases Energy Consumption

As system pressure falls, the compressor must compensate.

This leads to

• Longer compressor run times.
• Increased electrical energy consumption.
• Higher operating and maintenance costs.
• Accelerated wear on compressor components and controls.

Reducing pressure drop through proper compressed air piping system design is one of the most effective ways to improve efficiency and save money over the life of the system.

Moisture, Corrosion, and Contamination in Compressed Air Pipes

Moisture and contamination are unavoidable challenges in any compressed air system. As air is compressed, its temperature rises, allowing it to hold more water vapor. When that air cools inside compressed air pipes, moisture condenses, creating conditions that can damage the piping system, reduce air quality, and shorten the life of downstream equipment.

Why Moisture Is Unavoidable in Compressed Air Systems

Atmospheric air always contains moisture, and compression intensifies its effects.

As compressed air moves through the system

• Hot air leaving theair compressor begins to cool in the piping.
• Cooling causes water vapor to condense into liquid inside compressed air lines.
• Moisture settles in low points, dead ends, and poorly drained sections.
• Water can be carried downstream with the air stream if not properly removed.

Without proper control, moisture becomes a constant source of system problems.

Corrosion and Rust Contamination

Moisture inside metal piping leads directly to corrosion, especially in steel pipes.

Common consequences include

• Internal pipe wall degradation and reduced structural integrity.
• Rust contamination breaking loose and traveling through the system.
• Blocked fittings, damaged valves, and reduced airflow.
• Premature failure of air and pneumatic tools.

Corrosion also increases internal pipe roughness, which contributes to pressure drop and higher energy consumption.

Managing Moisture and Contaminants Effectively

Effective moisture control requires a combination of system design and air treatment components.

Key moisture and contamination control methods include

• Aftercoolers to reduce air temperature immediately after compression.
• Dryers to remove moisture before air enters the main distribution system.
• Filters to capture oil, water droplets, and solid particles.
• Proper drip leg placement at drops and low points to remove condensate.
• Sloped piping to guide moisture toward drainage points.

Controlling moisture protects air quality, reduces corrosion, and improves the long-term reliability of the entire air compressor piping system.

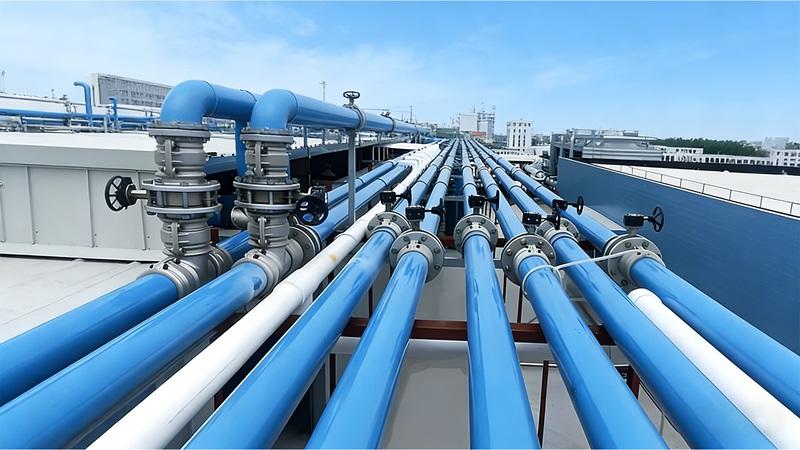

Compressed Air Piping Layout and Installation Best Practices

Correct layout and proper installation are essential for maintaining stable pressure, controlling moisture, and minimizing leaks in a compressed air piping system. Poor routing or installation shortcuts often lead to pressure drop, corrosion, and increased operating cost over time.

Straight-Line vs Looped Piping Systems

• Straight-line systems are easy to install but often experience pressure loss at the far end of the system.
• Looped piping systems supply air from multiple directions, improving pressure balance.
• Loop designs provide better performance for larger shops and simplify future expansion of compressed air lines.

Header and Drop Line Design

• Main headers should run above points of use to support consistent airflow.
• Drop lines should connect from the top of the header to reduce moisture carryover.
• Each drop should include a drip leg to capture condensate before it reaches tools or equipment.

Slope, Drainage, and Condensate Removal

• Horizontal compressed air lines should be sloped slightly in the direction of airflow.
• Drain points should be installed at low sections of the piping system.
• Proper drainage prevents moisture from damaging air and pneumatic tools.

Pipe Support and Thermal Expansion

• Pipes must be securely supported along walls or ceilings at regular intervals.
• Long pipe runs should allow for thermal expansion and contraction.
• Poor support can cause sagging, which traps moisture and increases corrosion risk.

Fittings, Valves, and Connections

• Use high-quality brass fittings to improve durability and sealing.
• Install ball valves at key locations for isolation and maintenance.
• Correctly connect fittings to prevent leaks and pressure loss.

Avoiding Common Installation Mistakes in Compressed Air Piping Systems

Installation mistakes are a leading cause of pressure loss, leaks, and premature failure in compressed air piping systems. Even when high-quality materials are used, poor installation can reduce system efficiency, increase operating cost, and shorten the life of the air compressor and connected equipment.

Undersized Pipe Selection

Choosing an undersized compressor pipe is one of the most common errors.

Why this causes problems

• Increases air velocity inside compressed air pipes.
• Creates higher friction and pressure drop.
• Forces the compressor to run longer to maintain pressure.

Proper pipe sizing is essential for stable pressure and efficient airflow.

Excessive Fittings and Sharp Bends

Each fitting adds resistance to airflow in the piping system.

Common issues include

• Overuse of elbows, tees, and reducers.
• Tight bends that disrupt the air stream.
• Poor routing that increases turbulence.

Minimizing fittings and using smooth routing improves airflow and reduces pressure loss.

Poor Connection and Joint Practices

Improperly installed joints are a major source of leaks.

Typical problems include

• Incorrectly connect fittings.
• Misaligned joints that loosen over time.
• Low-quality sealing materials.

Leaks reduce system pressure and increase energy consumption across the compressed air system.

Long-Term Impact of Poor Installation

Installation shortcuts may reduce upfront cost but lead to long-term issues.

Common consequences include

• Unstable pressure at points of use.
• Reduced performance of air and pneumatic tools.
• Higher maintenance demands and rising energy costs.

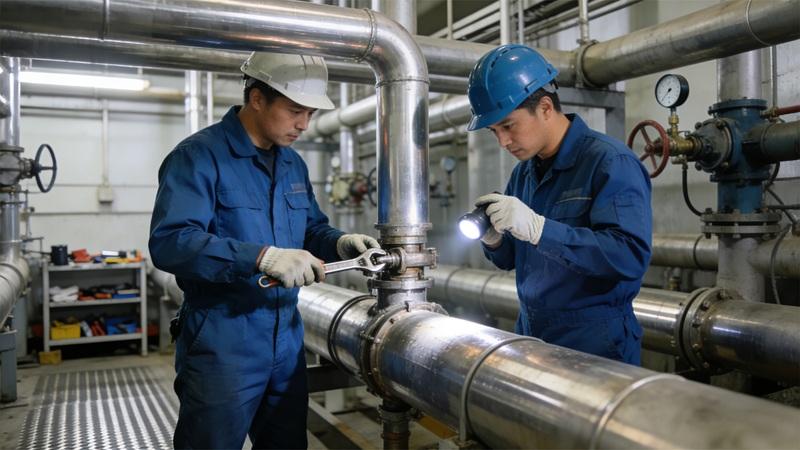

Maintenance and Long-Term Reliability of Compressor Piping

Regular maintenance is essential to keep an air compressor piping system efficient, safe, and reliable. Over time, pressure cycling, moisture, and normal wear can degrade the piping system, leading to air loss, contamination, and higher energy consumption across the compressed air system.

Common Failure Points in Compressed Air Piping

Certain areas of the system are more prone to failure and should be closely monitored.

Typical failure points include

• Leaks at fittings, threaded joints, and valves.
• Internal corrosion in metal pipes, especially where moisture accumulates.
• Worn or misaligned connection points caused by vibration or poor support.
• Drain points and low spots where condensate remains trapped.

Identifying these issues early helps prevent pressure loss and unexpected downtime.

Inspection and Preventive Maintenance Practices

Routine inspection reduces the risk of major failures and extends system life.

Recommended maintenance actions

• Inspect compressed air lines for leaks, vibration, or movement.
• Monitor pressure drop across the piping system to detect restrictions.
• Check for moisture buildup and ensure drains and drip legs are functioning.
• Service filters and dryers to maintain air quality.
• Verify pipe supports and anchors remain secure.

Preventive maintenance improves system stability and protects connected equipment.

Signs Your Piping System Needs Upgrading

Persistent issues often indicate that the existing air piping is no longer suitable.

Common warning signs include

• Frequent leaks or repeated repairs in the same areas.
• Declining performance of air tools and pneumatic tools.
• Rising energy use and increased compressor run time.
• Ongoing moisture or contamination problems despite maintenance.

Upgrading aging or poorly designed piping improves efficiency, reliability, and long-term performance of the air compressor piping system.

How to Choose the Best Compressor Pipe for Your Application

Selecting the right compressor pipe is a strategic decision that directly affects the efficiency, safety, and operating cost of a compressed air system. The best choice depends on pressure requirements, environmental conditions, air quality needs, and how the system is expected to grow over time.

Matching Pipe Material to Operating Conditions

Pipe material must be selected based on how the system actually operates, not just on nominal ratings.

Key factors to evaluate include

• System pressure and duty cycle, including peak demand and pressure fluctuations.
• Operating temperature, especially near the air compressor discharge.
• Presence of moisture, oil carryover, or contaminants in the air stream.
• Industry requirements such as cleanliness, corrosion resistance, or safety standards.
• Compatibility with connected air tools and pneumatic tools.

Matching material performance to real operating conditions improves reliability and reduces risk.

Balancing Cost, Safety, and Lifespan

Upfront material cost should never be the only selection factor.

Important trade-offs to consider

• Lower-cost materials often lead to more maintenance and shorter service life.
• Inadequate materials increase the likelihood of leaks, pressure drop, and energy loss.
• Durable piping reduces downtime, stabilizes pressure, and protects equipment.

Investing in higher-quality air piping often results in lower total cost of ownership.

Key Questions Before Selecting a Piping System

Before finalizing a piping system, decision-makers should clearly answer the following:

• What operating pressure is required at each point of use?
• Will future expansion or additional equipment be added?
• How accessible is the system for inspection and maintenance?
• Are safety, reliability, and long-term durability prioritized over short-term savings?

Clear answers to these questions help ensure the selected air compressor piping system delivers consistent performance and long-term value.

Ready to optimize your compressed air system?

GiantAir provides engineered piping solutions designed for efficiency, safety, and long-term reliability. Connect with the GiantAir team today and request our product catalog to explore proven options for building or upgrading your compressed air piping system with confidence.
