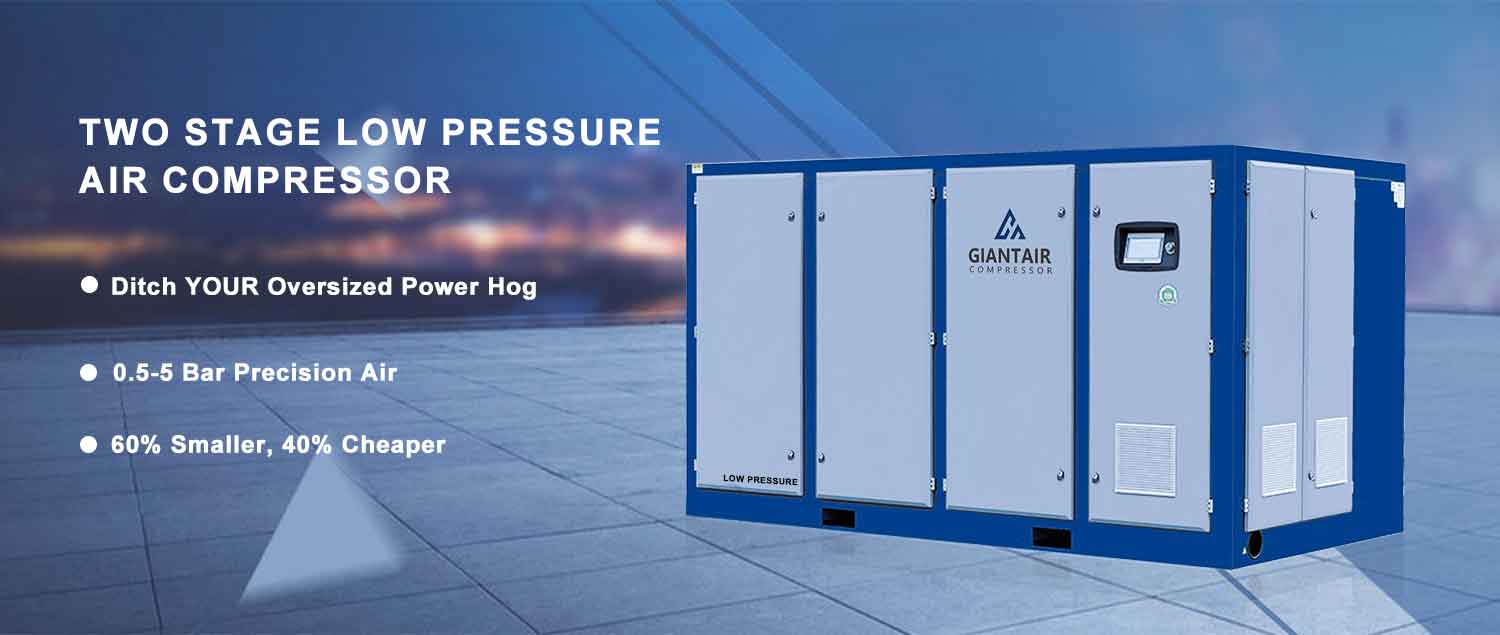

Two Stage Low Pressure Permanent Magnetic Variable Speed Screw Air Compressor (PM VSD)

Two Stage Low Pressure Permanent Magnetic Variable Speed Screw Air Compressor (PM VSD)

Two Stage Low Pressure Permanent Magnetic Variable Speed Screw Air Compressor (PM VSD) Featured Image
  • Two Stage Low Pressure Permanent Magnetic Variable Speed Screw Air Compressor (PM VSD)

Model：GD-II;

Brand: GIANTAIR

Rated Power: 37~250KW

Air Capacity: 9.5~651m³/min

Working Pressure: 4~5Bar


Product Detail

Product Tags

Product Image

233
p-d-2

PRODUCT FEATURES

·Ultra-low temperature rise design
·Closed-loop vector control system
·Stable and accurately controlled within 0.1 bar.
·Energy Saving 20-30%.
MODEL MAXIMUM WORKING PRESSURE FREE AIR DELIVERY* OF UNIT AT WORKING PRESSURE MOTOR NOISE LEVEL** AIR OUTLET DISCHARGE SIZE WEIGHT DIMENSIONS
Bar PSI l/s m3/min CFM kW HP dBA KG L X W X H
(mm)
GD-50PMII 4 58 172 10.30 368 37 50 70±2 G2 1600 2100 x 1300 x 1650
5 73 158 9.50 339
GD-60PMII 4 58 203 12.20 436 45 60 70±2 G2 1650 2100 x 1300 x 1650
5 73 192 11.50 411
GD-75PMII 4 58 258 15.50 554 55 75 70±2 G2 1700 2100 x 1300 x 1650
5 73 242 14.50 518
GD-100PMII 4 58 325 19.50 696 75 100 75±2 DN80 2700 2500 x 1650 x 1900
5 73 317 19.00 679
GD-125PMII 4 58 408 24.50 875 90 125 75±2 DN80 2800 2500 x 1650 x 1900
5 73 383 23.00 821
GD-150PMII 4 58 467 28.00 1000 110 150 75±2 DN80 2900 2500 x 1650 x 1900
5 73 458 27.50 982
GD-175PMII 4 58 600 36.00 1286 132 175 78±2 DN100 3100 3000 x 1900 x 1950
5 73 567 34.00 1214
GD-220PMII 4 58 767 46.00 1643 160 220 78±2 DN100 4400 3000 x 1900 x 1950
5 73 700 42.00 1500
GD-250PMII 4 58 867 52.00 1857 185 250 81±2 DN125 5500 3600 x 2200 x 2200
5 73 750 45.00 1607
GD-270PMII 4 58 950 57.00 2036 200 270 81±2 DN125 6000 3600 x 2200 x 2200
5 73 858 51.50 1839
GD-300PMII 4 58 1033 62.00 2214 220 300 85±2 DN150 6800 4000 x 2300 x 2300
5 73 917 55.00 1964
GD-340PMII 4 58 1083 65.00 2321 250 340 85±2 DN150 7500 4000 x 2300 x 2300
5 73 1017 61.00 2179
Specifications are subject to change without notice.

INTEL DRIVE FEATURES

High-efficiency induction motor, integrated variable speed driven (VSD) with speed control, Leading control and protection, soft starting eliminates drive Stress.

ECONOMY OFUSE

Saves your money by lowering your operation cost. These saving will continue to be delivered to your bottom line year after year.

Multiple Machine Operation

When operating as a pressure trim machine, the power savings achieved by a single compressor is multiplied by additional savings achieved over the full installation.

SOFT START LOWERS YOUR OPERATING COST

The gentle start cycle of the IntelliDrive increases the service life, meaning that frequent stop and restart cycles are permitted, without the risk of over-heating.

BEST EFFICIENCY AT PART-LOAD

When operating at part-load, the performance is top in class. The variable speed Intelli Driven avoids load cycling and maintains a steady state of operation, reducing operating and maintenance costs.
